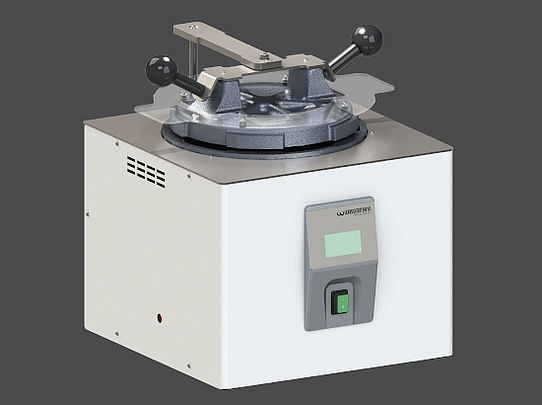

Wassermann Polyquick 260-T105 drukpolymerisatieautomaat en drukverdichter

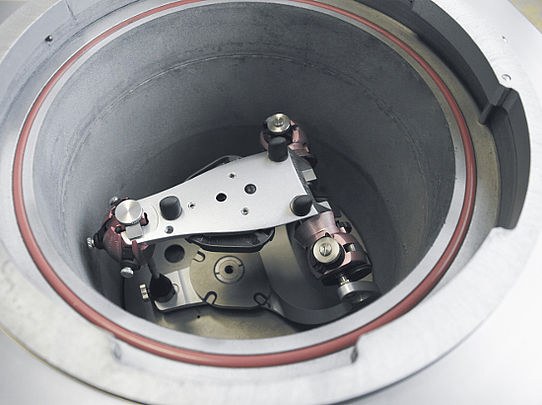

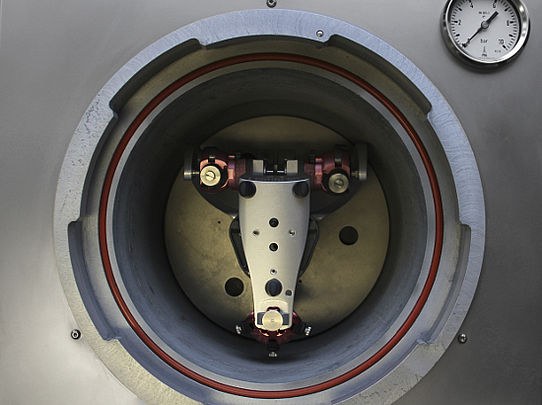

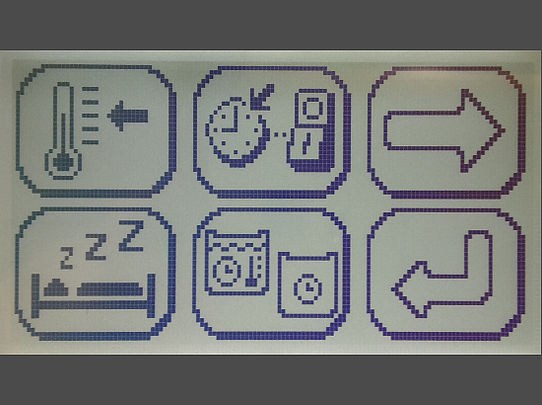

Range of application: Polyquick 260-T105 is a pressure polymerisation unit for hot and cold polymerisation of plastics. It can be set to a maximum temperature of 105°C and the polymerisation pressure can be adjusted to a maximum of 4 bar. In automatic mode, the polymerisation time can be preselected up to 99 hours. A touch screen and the newly developed control panel allow the user to set the relevant parameters quickly and easily using self-explanatory symbols. The Polyquick 260 can also be used as a pressure compactor without heating. Major features at a glance: Compact table-top unit for pressure polymerisation up to 105°C in a water bath Three continuously adjustable polymerisation stages Touch screen for fast and easy operation The device can also be operated as a pressure compactor Rapid draining: Prompt switch between the two modes Separate menu for each mode Intelligent workflow preset by the software helps the user to ensure operational safety Remaining time displayed to the second Powerful, electronically controlled heating for optimal water temperature Very large capacity Ø 240 mm, usable depth 160 mm, suitable for extra large articulators Pressure relief valve for protection in case of malfunction (7 bar) Safety lid with bayonet lock Engraving in container indicating max. water level Dry-run protection Time and cost saving due to thermal insulation Low maintenance, easy to service Made almost entirely of stainless steel Included in delivery: Flask bracket support Compressed air hose, 2 m Discharge hose, 2 m Hose clip Ø 12-20 x 9 Technical Specifications: Voltage 220–240 V / 50/60 Hz Power consumption 4.3 A Output 1100 W W x H x D 420 x 450 (open=490) x 510 (+20 for air socket) mm Weight 41 kg Sound level ≤ 70 dB (A) Compressed air connection min. 2 bar Operating pressure max. 4 bar (limiting at 20°C) Pressure chamber Ø 240 mm, depth 175 mm (usable depth 160 mm)
