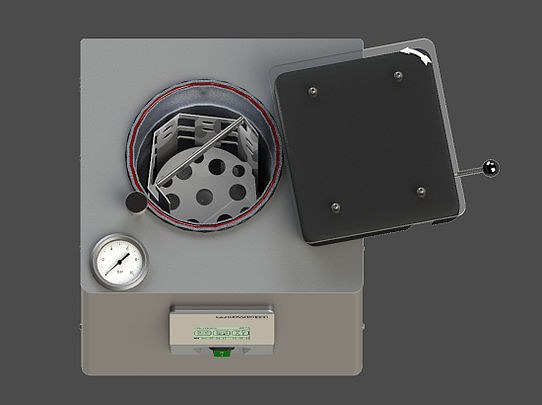

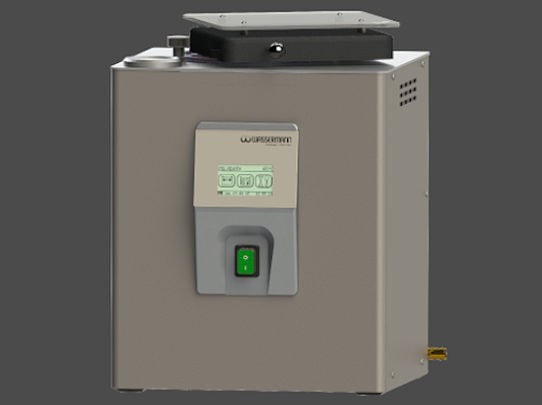

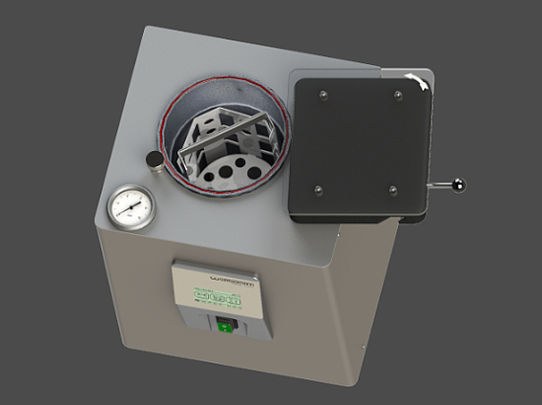

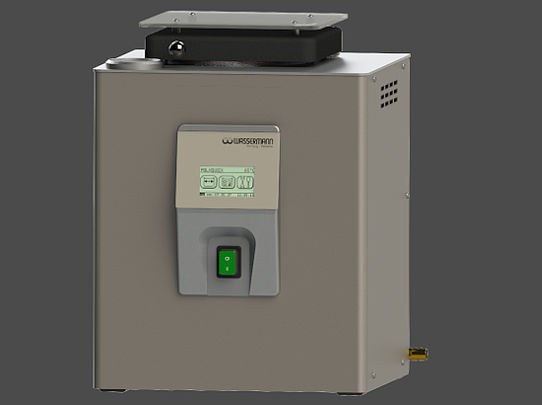

Wassermann Polyquick 160-T95 drukpolymerisatieautomaat en drukverdichter

Range of application: The Polyquick 160-T95 is a pressure polymerisation unit for hot and cold polymerisation of plastics. This automat is designed for polymerisation of up to 3 flasks in flask holder or 2 cast resin flasks or rebasing frames or 6 orthodontic regulatings at one time. It can be set to a maximum temperature of 95 °C and the polymerisation pressure can be adjusted to a maximum of 6 bar. In automatic mode, the polymerisation time can be preselected up to 99 hours. A touch screen and the newly developed control panel allow the user to set the relevant parameters quickly and easily using self-explanatory symbols. The Polyquick 160-T95 can also be used as a pressure compactor without heating or for dry pressure compression up to approx. 70°C. Major features at a glance: • Compact table-top unit for pressure polymerisation up to 95 °C in a water bath • Large capacity Ø 150 mm, depth 285 mm • Touch screen for fast and easy operation • 13 programmes, each with three individually configurable polymerisation stages • The unit can also be operated as a pressure compactor • Optional feature: Dry pressure compression up to approx. 70°C • Rapid draining: prompt switch between the two modes • Separate menu for each mode • Intelligent workflow preset by the software helps the user to ensure operational safety • Remaining time displayed to the second • Powerful, electronically controlled heating for optimal working temperature • Pressure relief valve for protection in case of malfunction (7 bar) • Safety lid with bayonet lock • Dry-run protection • Engraving in container indicating max. water level • Time and cost saving due to thermal insulation • Made almost entirely of stainless steel • Low maintenance, easy to service Included in delivery: Flask bracket support Flask basket Compressed air hose, 2 m Discharge hose, 2 m Hose clip Ø 12-20 x 9 Technical Specifications: Voltage 220–240 V / 50/60 Hz Power consumption 4.2 A Output 1000 W W x H x D 325 x 435 x 375 mm Weig
