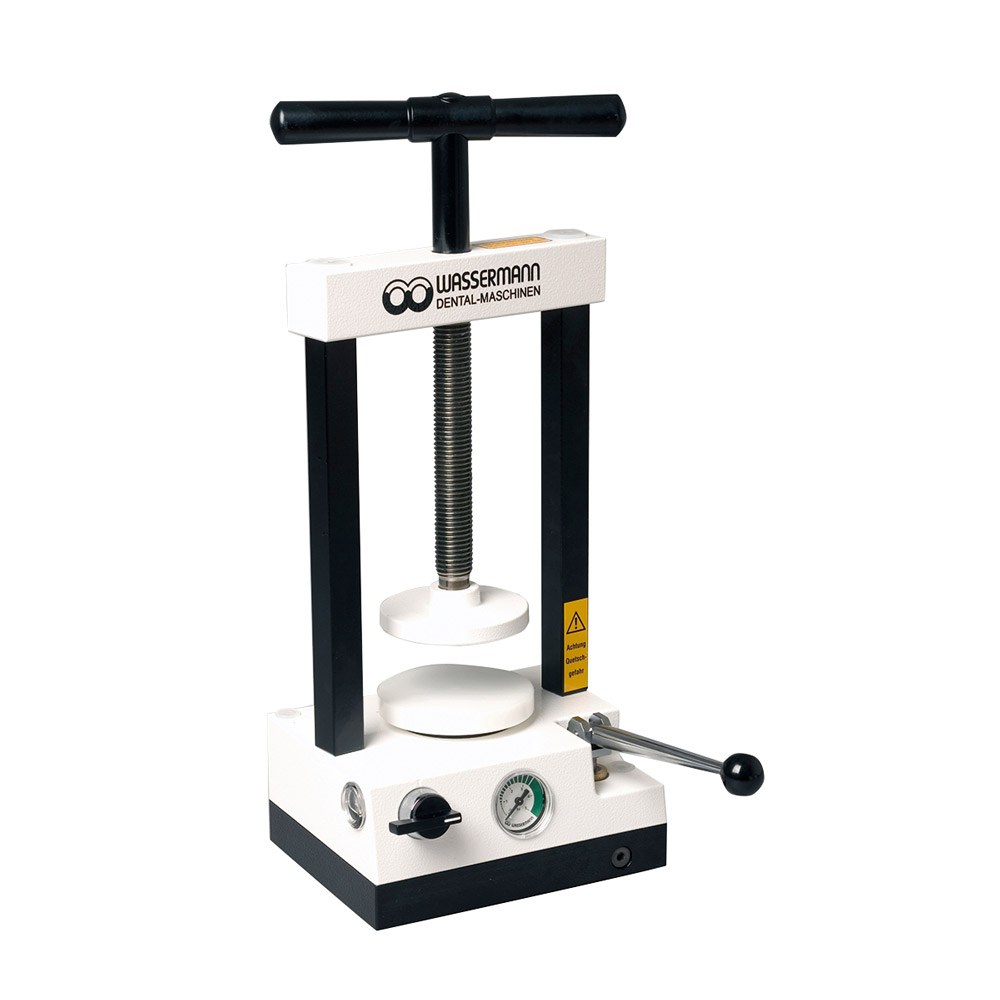

Wassermann WW-33 hydraulische pers voor 1-3 of 2-4 cuvetten

Range of application: Designed for daily use, with a working pressure that can be adjusted up to 6 tonnes – for the correct pressing of 1–3 or 2–4 flasks. And so efficiently, thanks to the valve which can be opened to allow the piston to return to its starting position automatically – ready again for operation without losing time. Major features at a glance: break-resistant hydraulic press in drawn steel for pressing 1–3 or 2–4 flasks pressure infinitely adjustable up to 6 tonnes oxidation-free piston in super-strong material automatic piston return after valve opening quality pressure gauge with precision display recessed in housing support separation of 152 mm to allow use of larger flasks and flask clamps high stability integrated oil level display housing plastic-powder-coated Included in delivery: WW-33 for 1–3 or 2–4 flasks Technical Specifications: W x D/ D incl. pump lever 200 x 158/ 295 mm Distance between columns 152 mm Distance plunger plate max. 272/ min. 102 mm (2-4 flasks) max. 212/ min. 42 mm (1-3 flasks) Weight 16.0 kg (2-4 flasks) 14.7 kg (1-3 flasks) Working pressure up to 6 tons Working table diameter Ø 95 mm Height max. 710/ min. 540 mm (2-4 flasks) max. 650/ min. 480 mm (1-3 flasks)

• Werkdruk traploos instelbaar tot 6 ton
• Automatische terugloop na openen van het ventiel
• Verzonken drukmeter met precisieaanduiding
• Kolomafstand van 152 mm voor grotere cuvetten
• Geïntegreerde oliepeilindicatie
